A common mode choke is a critical component used in electronic circuits to reduce the electromagnetic interference (EMI) that can impact performance and cause malfunctions.
common mode choke for usb 2.0
common mode choke for usb 2.0

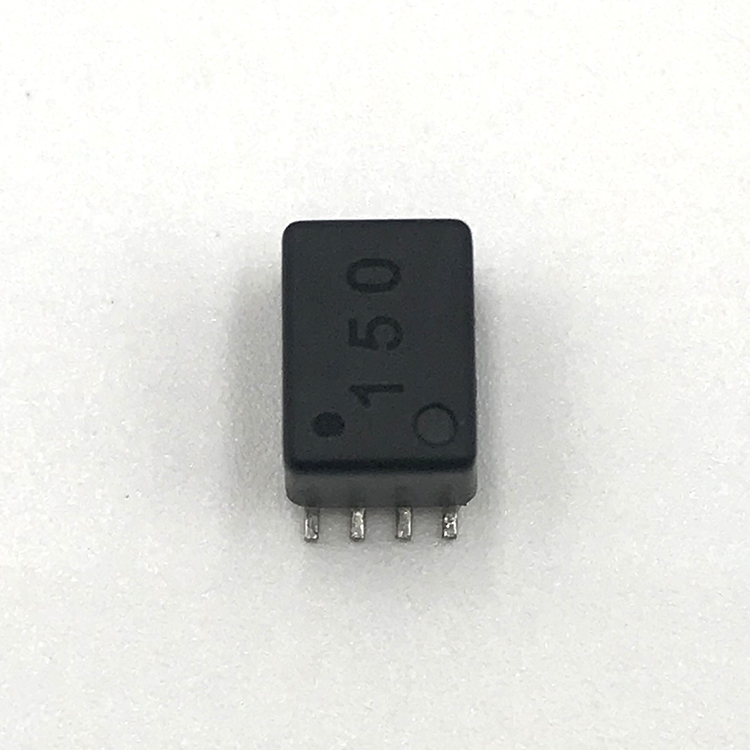

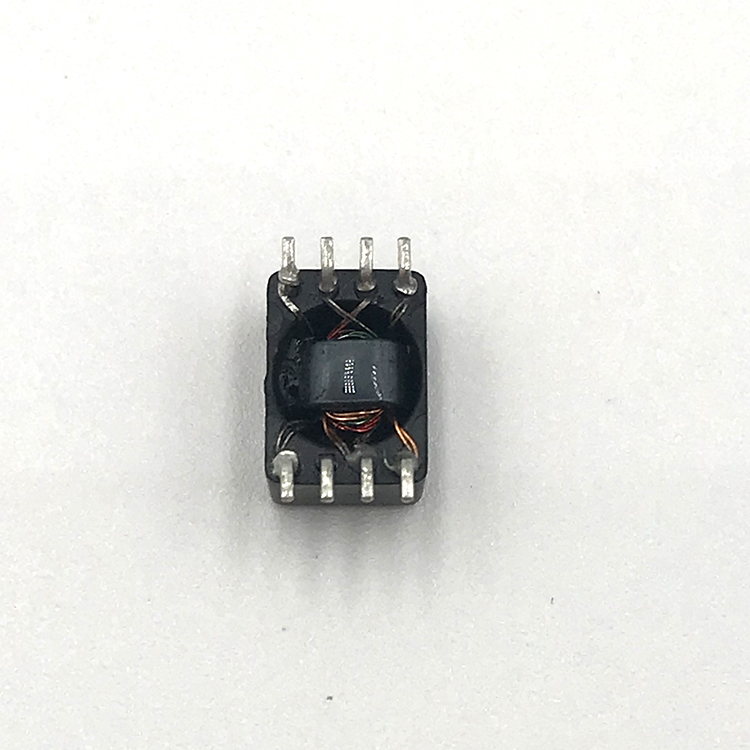

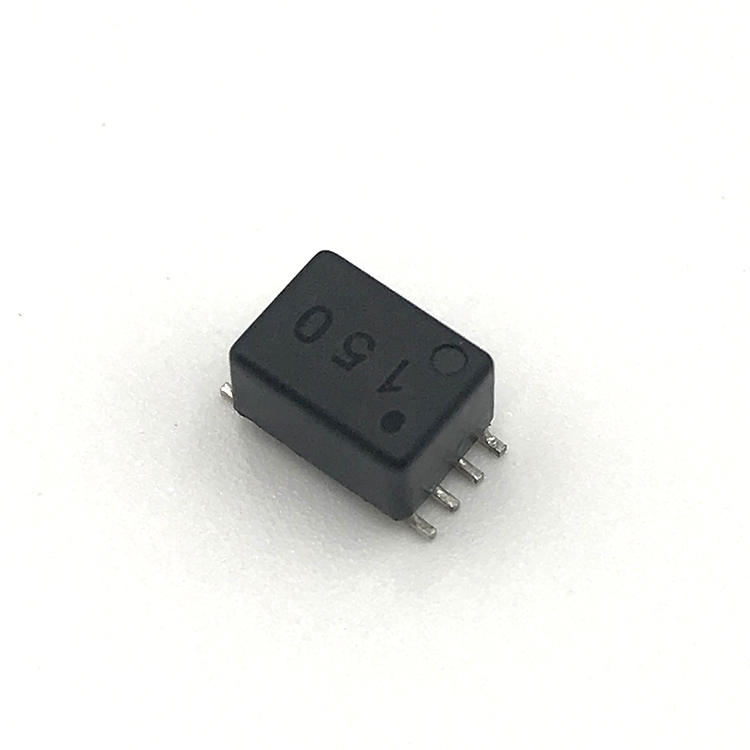

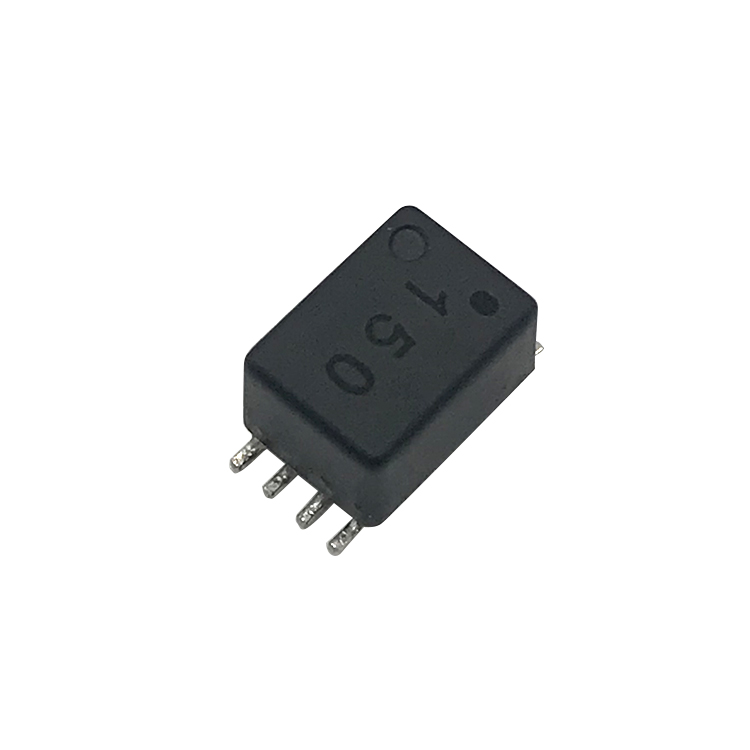

PGT0801RA Electronic common mode choke amplifier transformer

PGT0801RA A
PGT0801RA Electronic common mode choke amplifier transformer
minimum order
1 piece
Country of Origin
Shenzhen Guangzhou
Quantity
Contact Now
add to cart

Reduce common mode noise in your electronic circuits with our high-quality common mode chokes. These chokes are designed to suppress common mode interference and provide improved signal integrity.

  • hdmi common mode choke
  • common mode choke for usb 2.0
  • Product name:dc common mode filter
  • Storage Temperature Range:-25℃to +125℃
  • Operating Temperature:0℃~70℃
  • OCL:PIN 1-4 = 100uH Min. @100 KHz/0.1V
  • Leakage Inductance:PIN 1-4 = 0.6uH Max. @100 KHz/0.1V (PIN 5-8 Short)
  • Interwinding Capacitance:PIN 1-4 to PIN 5-8 = 25pF Max. @100 KHz/0.1V
  • Hi-POT:1500 VAC
  • Turn Ratio:1:1±3%
  • D.C.R:PIN 1-4 = 0.4 ohm Max
  • Reflow peak temperature:250℃ Max
