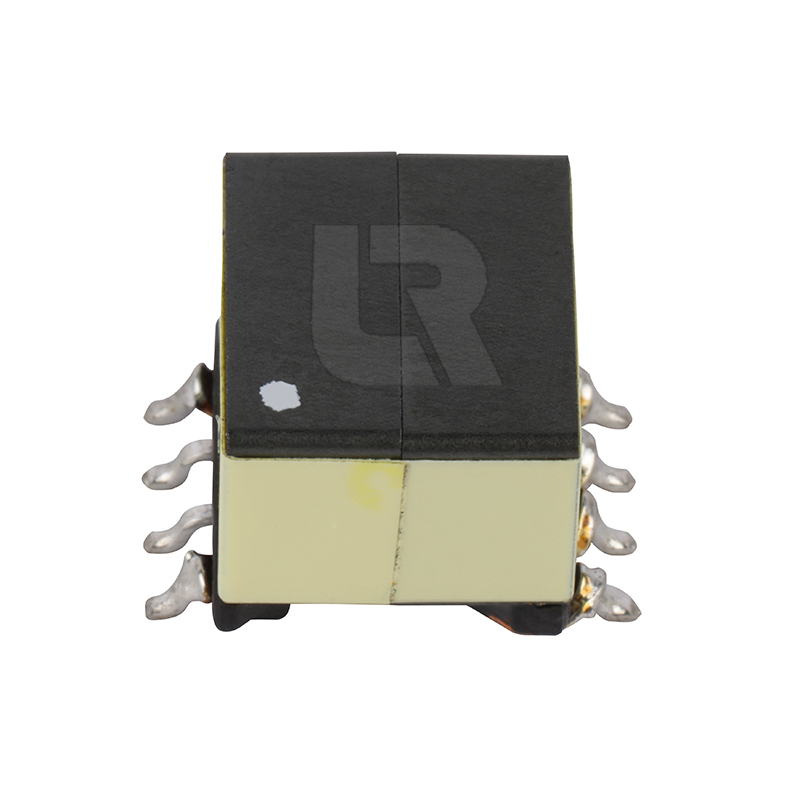

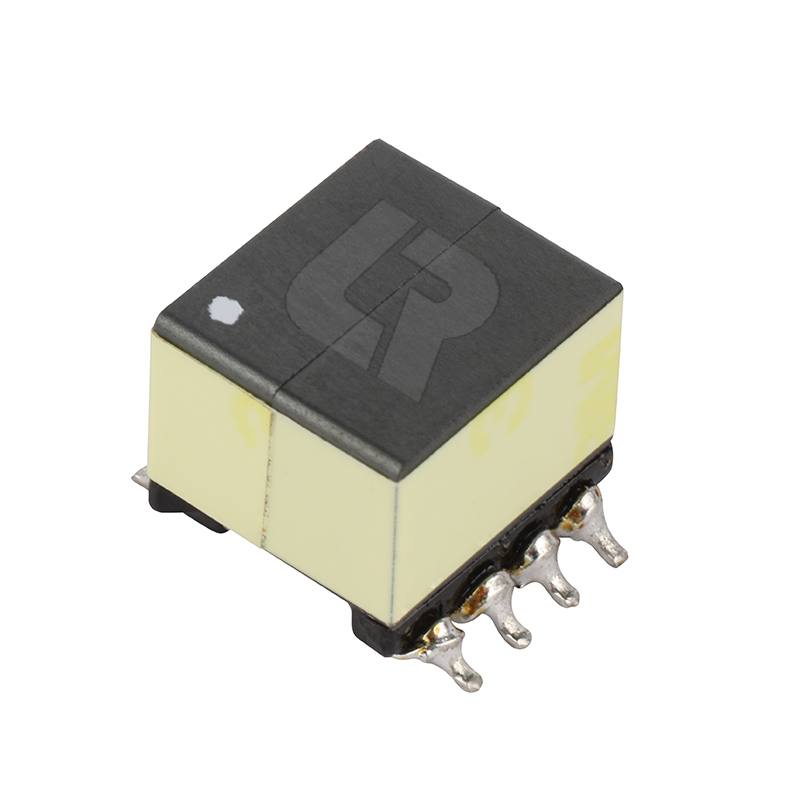

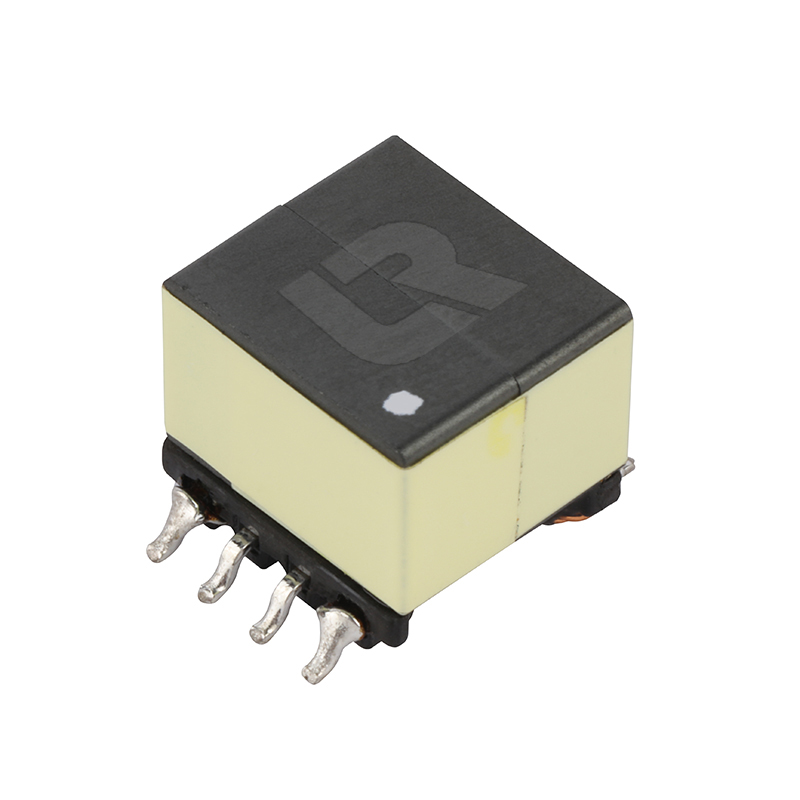

PA2417NL EP13 Mini Electric Transformer 12V 5V 3V Ferrite Core Transformer High Frequency AC/DC Flyback Transformers
EP13A PA2417NL A
Enhance your power supply with our mini power transformer. Compact and efficient design for space-constrained applications. Reliable performance and competitive pricing.
minimum order
1 piece
Country of Origin
Shenzhen Guangzhou
Quantity
Enhance your power supply with our mini power transformer. Compact and efficient design for space-constrained applications. Reliable performance and competitive pricing.
- Model:EP13 PA2417NL
- Usage:High Frequency Mini Electric Transformer
- high frequency transformer core;120v to 220v step up transformer
- Coil Number:Customized
- Magnetic core material:Ferrite Core Transformer
- Certification:RoHS Compliant
- Operating Temperature:-40°C~+85°C
- Inductance:PIN 1-3 = 140.0uH ±10% @ 100kHz/0.1V
- Hi-POT:PRI. -SEC. = 1500V/60Hz/2Sec/1mA
- Leakage Inductance:PIN 1-3 = 3.0uH Max. @ 100KHz/0.1V (PIN 12-11-10-9-8-7 Short)/Customized
