Solving PoE Power Limitations with Advanced Transformer Technology

PoE technology is defined by a series of IEEE standards that specify the maximum amount of power that can be transmitted over an Ethernet cable:

IEEE 802.3af (PoE):

Maximum power: 15.4 watts
Applications: VoIP, basic IP cameras, simple wireless access points
IEEE 802.3at (PoE+):

Maximum power: 30 watts
Applications: Advanced IP cameras, video phones, high power wireless access points Advanced IP cameras, video phones, high performance wireless access points
IEEE 802.3bt (PoE++):

Type 3: Maximum Power: 60 Watts
Type 4: Maximum Power: 100 Watts
Applications: PTZ cameras, LED lighting, high performance wireless access points, some IoT devices

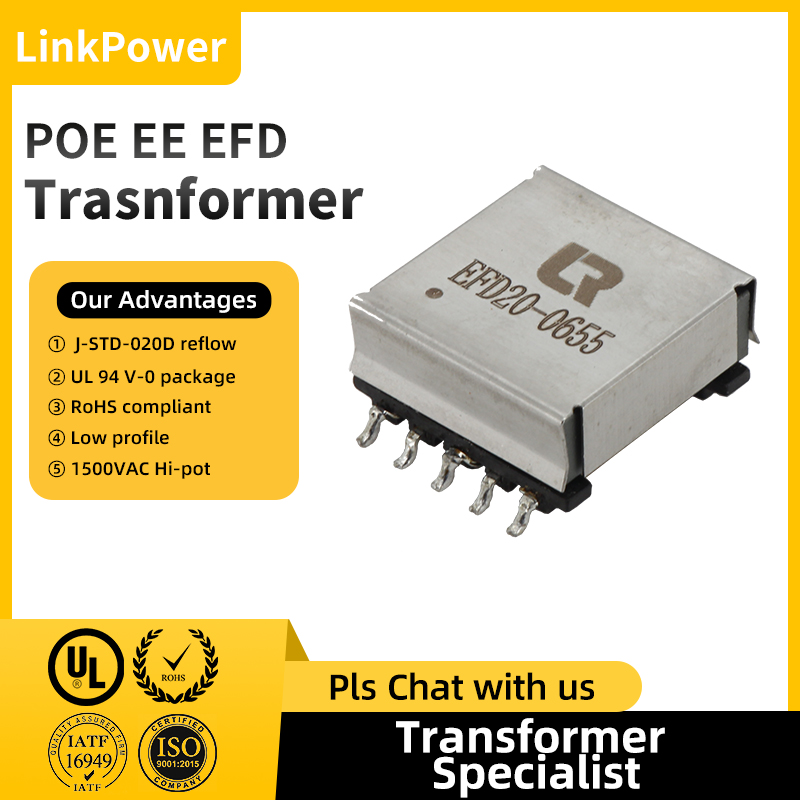

Transformers are an essential component of a PoE system, converting voltage and ensuring efficient power delivery. Recent advances in transformer technology are critical to addressing the power limitations of existing PoE standards.

Improved efficiency:
Advanced transformer designs incorporate highly efficient materials and improved winding techniques. These innovations reduce energy loss during power conversion, ensuring that connected devices receive more power while minimising heat generation.

Compact integration:
Modern transformers are becoming more compact, making them easier to integrate into PoE switches and injectors. These smaller, more efficient transformers help optimise space and increase the overall power density of PoE systems.

Superior thermal management:
Effective thermal management is critical to maintaining transformer performance and longevity in PoE applications. Innovations such as advanced heatsinks, improved airflow design, and the use of thermally conductive materials help manage heat dissipation more effectively.



Transformers are leading the way in overcoming the power limitations imposed by current PoE standards. Here are a few ways advanced transformer technology comes into play:

Improve power transfer:
Through improved efficiency and thermal management, transformers can handle higher power loads, effectively breaking existing PoE power limits. This allows them to support more power-hungry devices such as complex security systems, high-performance lighting and advanced automation equipment.

Maintain signal integrity:
High-quality transformers ensure that power and data signals remain strong over long distances. By minimising voltage drop and electromagnetic interference, these transformers help maintain signal integrity, which is critical to the reliable operation of PoE systems.

Enabling hybrid power solutions:
Transformers are key to hybrid power solutions that combine PoE with other power sources. These solutions ensure that devices that require more power than allowed by PoE standards can still operate efficiently by drawing supplemental power from local sources or backup batteries.



Advances in transformer technology will have a significant impact on the PoE industry. By addressing the power limitations of current standards, these innovations will make PoE applications more robust and versatile. The Institute of Electrical and Electronics Engineers (IEEE) is also working on new standards that will likely incorporate these advancements to further improve the power transfer capabilities of PoE systems.

The role of transformers in PoE systems will become even more important as the demand for power-intensive equipment continues to grow. The continued development of advanced transformer technologies is expected to improve the efficiency, reliability, and scalability of PoE to support the next generation of connected devices and smart infrastructure.

In short, transformers are critical to overcoming the power limitations of current PoE standards. Through continuous innovation, transformers can provide a more efficient and powerful PoE solution, ensuring that the technology meets the evolving needs of modern networks and applications.
