Optimize data communication with 100/1000 Base-T Transformers. Discover the benefits of our high-quality transformers for efficient signal transmission and data transfer in Ethernet communication.

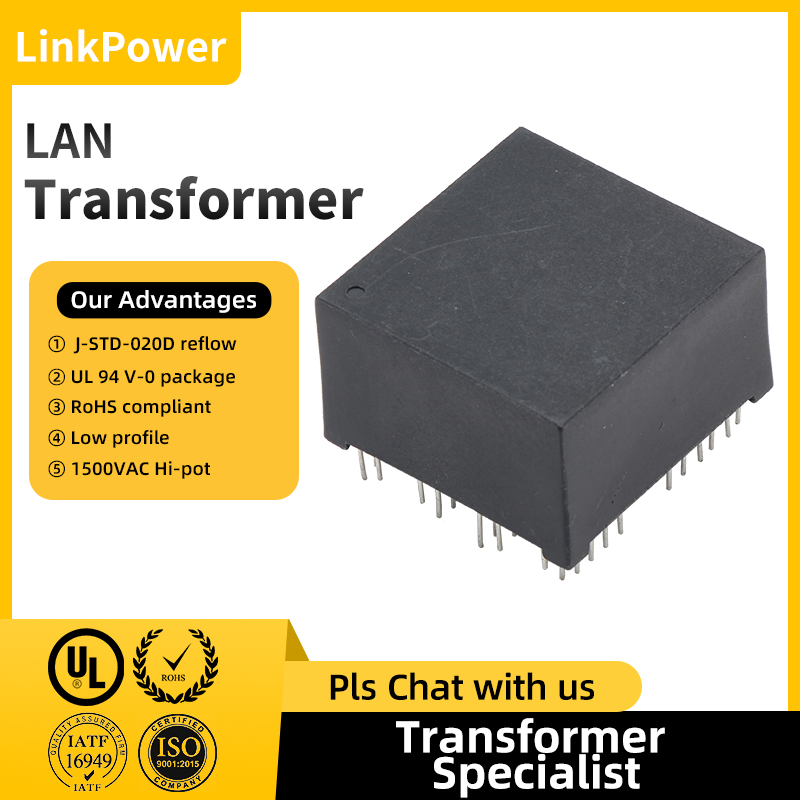

LAN switch inductance coil network transformer

LAN-601-7
LAN switch inductance coil network transformer
minimum order
1 piece
Country of Origin
Shenzhen Guangzhou
Quantity
Contact Now
add to cart

LAN switch inductance coil network transformer

  • Model Number:Network transformer,spatial transformer networks
  • Type:Network transformer
  • Brand Name:OEM
  • Application:Electronic
  • Brand:LR
  • Number of Coils:26
  • Inductance - Connected In Parallel:400uH
  • Current Saturation - Parallel:0.5mA
  • Current Saturation - Series:0.5mA
  • DC Resistance (DCR) - Parallel:750
  • DC Resistance (DCR) - Series:800
  • Material - Core:perrte core
  • DC Resistance (DCR):750 mΩ
  • Product name:Common mode Choke
  • Impedance:Custom
  • Certification:ROHS
  • Core:Perrite core
  • OCL:350uH MIN.@100KHz/0.1V with 8mA DC Bias
  • HI-POT:1500Vrms
  • MOQ:1pc
