Common mode choke coil is a compact and versatile component that effectively suppresses electromagnetic interference in electronic circuits. Find high-quality common mode choke coils at competitive prices for your projects.

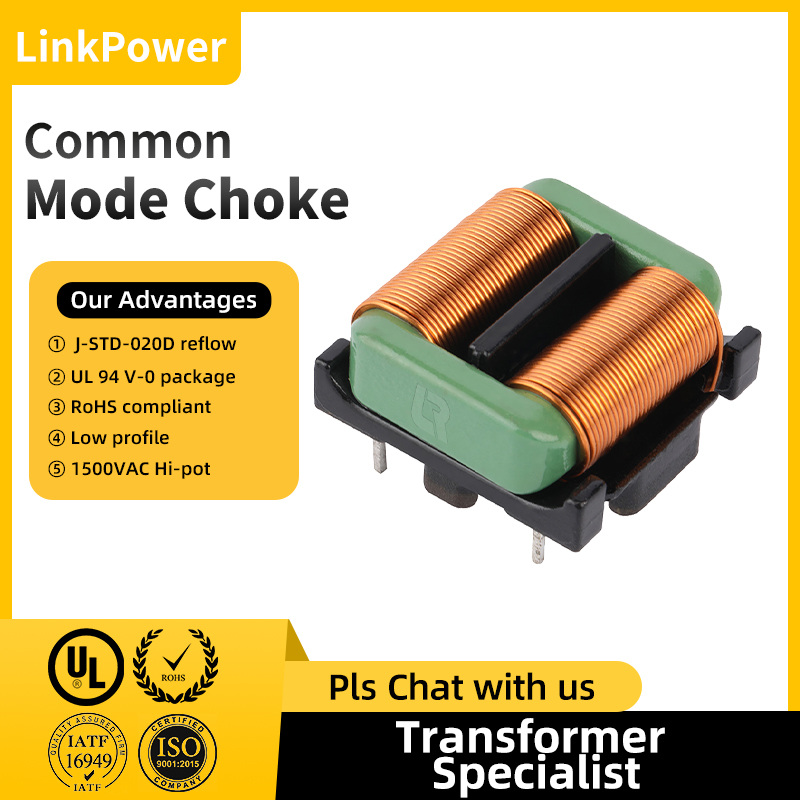

High-Current Common Mode Choke for Power Supply Systems

Common-613-6
PGT0801R Electronic common mode choke amplifier transformer
minimum order
1 piece
Country of Origin
Shenzhen Guangzhou
Quantity
Contact Now
add to cart

High-Current Common Mode Choke for Power Supply Systems.


  • Brand Name:LR
  • Model Number:PGT0801R
  • Usage:High Frequency
  • Phase:Single
  • Coil Structure:TOROIDAL
  • Product name:toroidal common mode choke coil inductor,common mode inductor,common mode coil
  • Storage Temperature Range:-25℃to +125℃
  • Operating Temperature:0℃~70℃
  • OCL:PIN 1-4 = 100uH Min. @100 KHz/0.1V
  • Leakage Inductance:PIN 1-4 = 0.6uH Max. @100 KHz/0.1V (PIN 5-8 Short)
  • Interwinding Capacitance:PIN 1-4 to PIN 5-8 = 25pF Max. @100 KHz/0.1V
  • Hi-POT:1500 VAC
  • Turn Ratio:1:1±3%
  • D.C.R:PIN 1-4 = 0.4 ohm Max
  • Reflow peak temperature:250℃ Max
  • common mode choke coil
