High-Frequency Transformers Industrial Control equipment

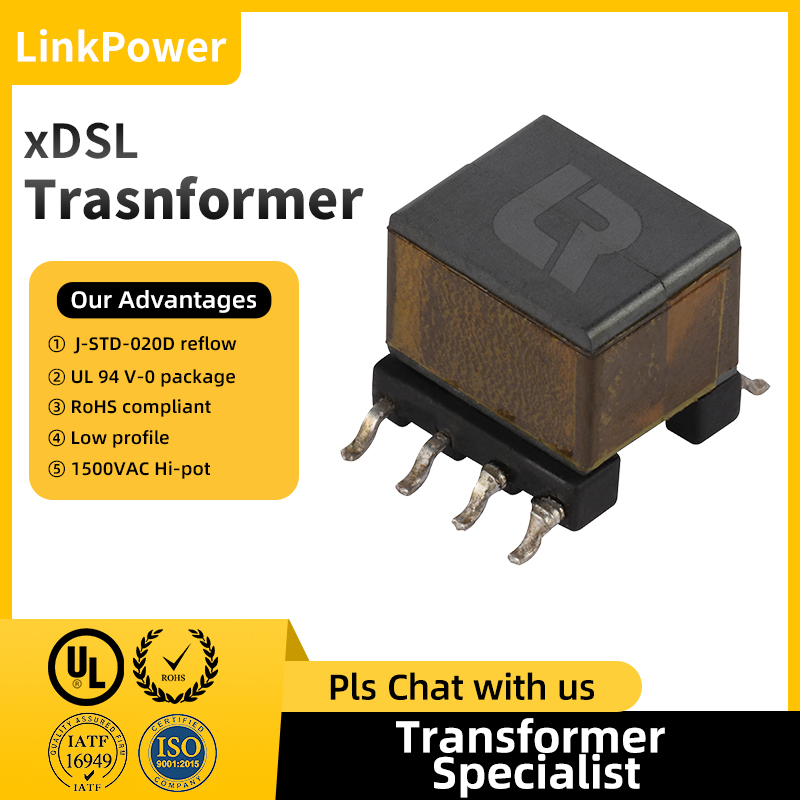

xDSL-603-2
The EP10 transformer is a high-performance transformer widely used in various electronic devices and appliances. It is designed to efficiently convert power from one voltage to another, making it an essential component for power conversion systems.
This transformer is characterized by its compact size and high efficiency. It is built with high-quality ferrite cores and copper coils, providing excellent thermal stability and reducing energy loss during the conversion process. Its advanced design also minimizes stray magnetic fields, enhancing system stability, and reducing electromagnetic interference (EMI).
The EP10 transformer has multiple turn ratios, spanning a wide range of voltage ratings and operating frequencies, enabling it to cover various applications. It is suitable for use in switch-mode power supplies, inverters, and other power conversion systems.
This transformer is characterized by its compact size and high efficiency. It is built with high-quality ferrite cores and copper coils, providing excellent thermal stability and reducing energy loss during the conversion process. Its advanced design also minimizes stray magnetic fields, enhancing system stability, and reducing electromagnetic interference (EMI).
The EP10 transformer has multiple turn ratios, spanning a wide range of voltage ratings and operating frequencies, enabling it to cover various applications. It is suitable for use in switch-mode power supplies, inverters, and other power conversion systems.
minimum order
1 piece
Country of Origin
Shenzhen Guangzhou
Quantity
High-Frequency Transformers Industrial Control equipment
- LINK-POWER EP10 Industrial Control equipment High-Frequency Transformers
- Flyback transformer for PoE applications.
- Meets IEEE 802.3af (PoE) Standards.
- Operates in condition mode with 9V-72V input.
- Very low power lose of core used with operation frequency up to 300KHz.
- Resistance to soldering heat Max three 40 second reflows at +250°C, parts cooled to room temperature between cycles.
- Moisture Sensitivity Level (MSL) 1 .
- Terminations RoHS tin-silver-copper over tin over nickel over phos bronze.Other terminations available at additional cost.
- Operating Temperature -40°C to +85°C.(Including coil temperature rise due to self-generated heat).
- Storage Temperature -40°C to +125°C.
- Weight4.0 g.
