HF common mode choke is a high-frequency component that filters out common mode noise in electronic circuits. Find high-quality HF common mode chokes at competitive prices for your projects.

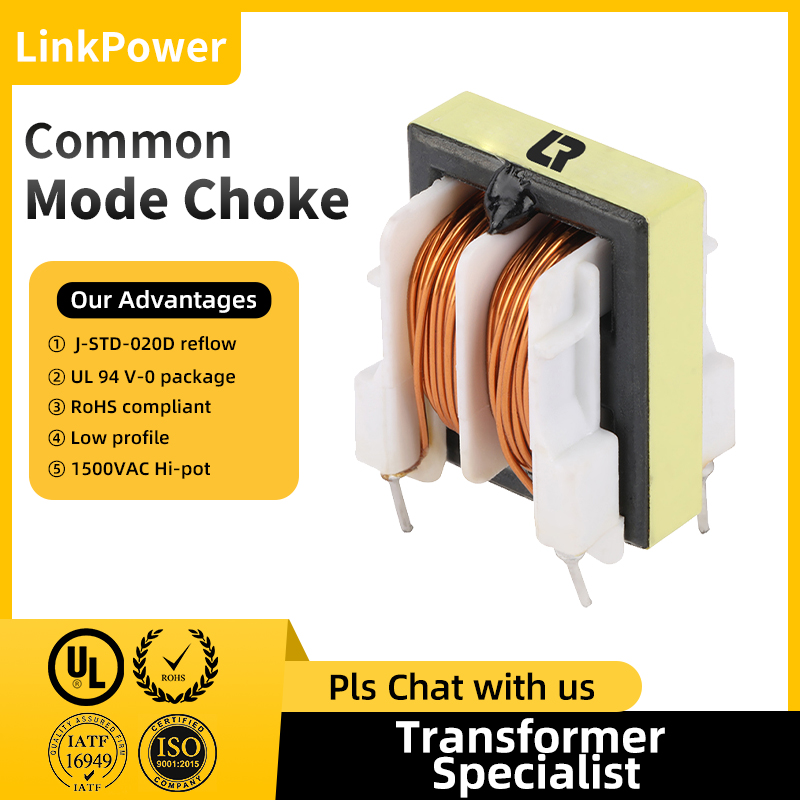

Industrial-Grade Common Mode Choke for Harsh Environments

Common-613-8
PGT0801RA Electronic common mode choke amplifier transformer
minimum order
1 piece
Country of Origin
Shenzhen Guangzhou
Quantity
Contact Now
add to cart

Industrial-Grade Common Mode Choke for Harsh Environments.

  • Model Number:PGT0801R
  • hf common mode choke
  • Product name:common mode suppression choke
  • Storage Temperature Range:-25℃to +125℃
  • Operating Temperature:0℃~70℃
  • OCL:PIN 1-4 = 100uH Min. @100 KHz/0.1V
  • Leakage Inductance:PIN 1-4 = 0.6uH Max. @100 KHz/0.1V (PIN 5-8 Short)
  • Interwinding Capacitance:PIN 1-4 to PIN 5-8 = 25pF Max. @100 KHz/0.1V
  • Hi-POT:1500 VAC
  • Turn Ratio:1:1±3%
  • D.C.R:PIN 1-4 = 0.4 ohm Max
  • Reflow peak temperature:250℃ Ma
