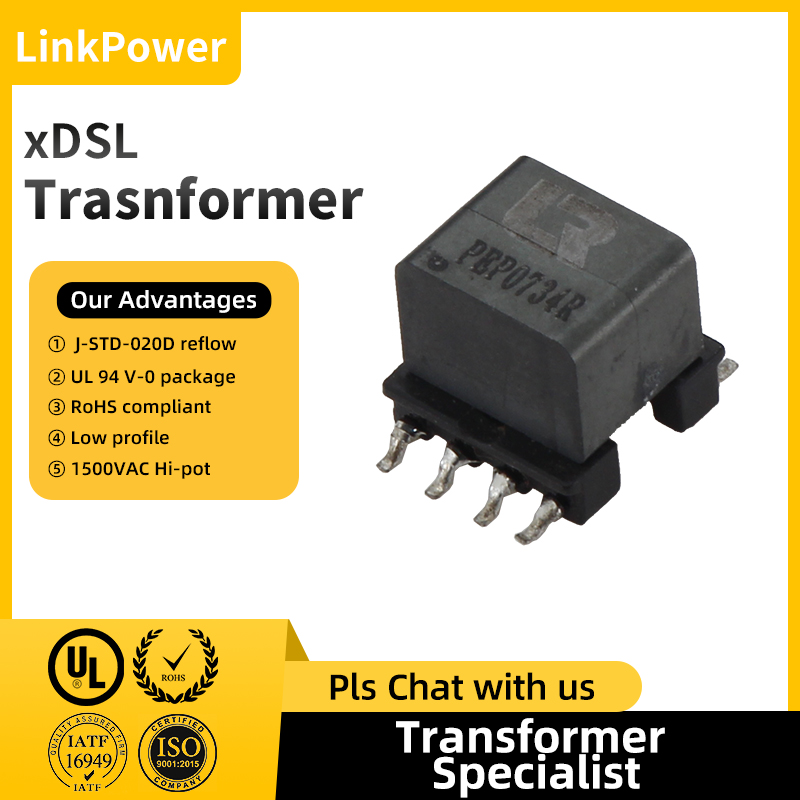

Premium xDSL Modem Transformers High-Frequency Transformers
xDSL-603-9
The EP7 transformer is a high-quality transformer widely used in numerous electronic devices and appliances, such as switch-mode power supplies, home appliances, personal electronics, and industrial control systems. It is designed to efficiently convert AC voltages to DC voltages or vice versa, making it an essential component for power conversion systems.
The EP7 transformer is characterized by its small size and lightweight design, making it an ideal choice for compact devices with limited space. This transformer is built with high-quality ferrite cores and copper coils that provide excellent thermal stability, low core loss, and high magnetic permeability. Its advanced design ensures minimal stray magnetic field and high efficiency, allowing it to reduce energy loss during the conversion process while minimizing electromagnetic interference, making it ideal for sensitive electronic applications.
The EP7 transformer is characterized by its small size and lightweight design, making it an ideal choice for compact devices with limited space. This transformer is built with high-quality ferrite cores and copper coils that provide excellent thermal stability, low core loss, and high magnetic permeability. Its advanced design ensures minimal stray magnetic field and high efficiency, allowing it to reduce energy loss during the conversion process while minimizing electromagnetic interference, making it ideal for sensitive electronic applications.
minimum order
1 piece
Country of Origin
Shenzhen Guangzhou
Quantity
Premium xDSL Modem Transformers High-Frequency Transformers
- Flyback transformer for POE applications.
- Meets IEEE 802.3af (POE) Standards.
- Operates in condition mode with10V-30V input.
- Very low power lose of core used with operation frequency up to 300KHz.
- Resistance to soldering heat Max three 40 second reflows at +250°C, parts cooled to room temperature between cycles.
- Moisture Sensitivity Level (MSL) 1 .
- Terminations RoHS tin-silver-copper over tin over nickel over phos bronze.Other terminations available at additional cost.
- Operating Temperature -40°C to +85°C.(including coil temperature rise due to self-generated heat).
- Storage Temperature -40°C to +125°C.
- Weight2.1 g.
- modem transformer
