Murata common mode choke is a top-quality component that provides efficient noise suppression in electronic circuits. Find the best Murata common mode chokes at affordable prices for your projects.

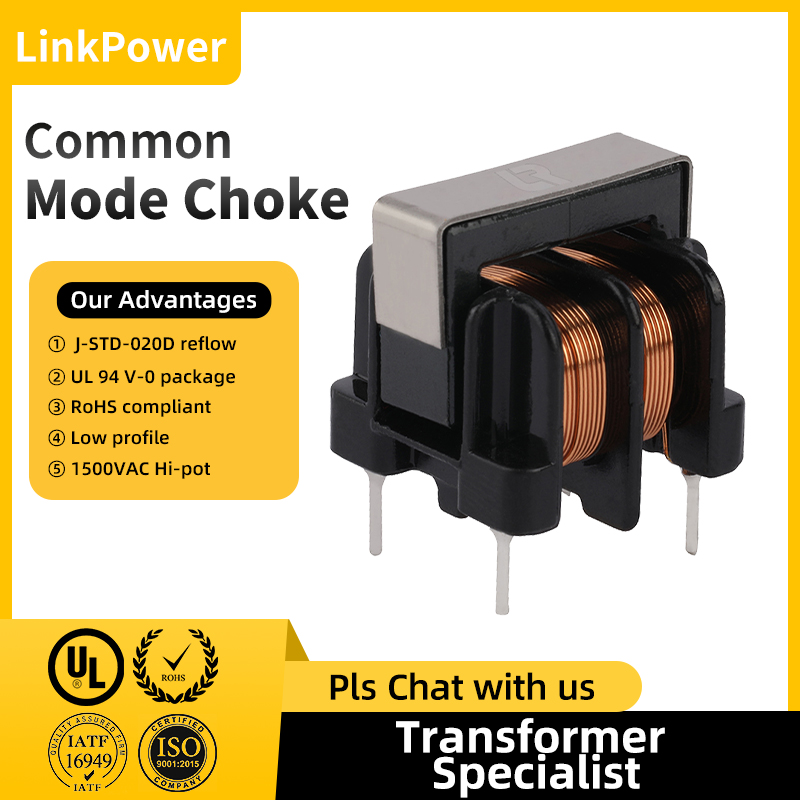

Common Mode Choke for USB and Ethernet Interfaces

Common-613-7
PGT0801RA Electronic common mode choke amplifier transformer
minimum order
1 piece
Country of Origin
Shenzhen Guangzhou
Quantity
Contact Now
add to cart

Common Mode Choke for USB and Ethernet Interfaces.

  • Model Number:PGT0801R
  • Usage:High Frequency
  • Product name:tdk common mode choke;murata common mode choke
  • Storage Temperature Range:-25℃to +125℃
  • Operating Temperature:0℃~70℃
  • OCL:PIN 1-4 = 100uH Min. @100 KHz/0.1V
  • Leakage Inductance:PIN 1-4 = 0.6uH Max. @100 KHz/0.1V (PIN 5-8 Short)
  • Interwinding Capacitance:PIN 1-4 to PIN 5-8 = 25pF Max. @100 KHz/0.1V
  • Hi-POT:1500 VAC
  • Turn Ratio:1:1±3%
  • D.C.R:PIN 1-4 = 0.4 ohm Max
  • Reflow peak temperature:250℃ Max
