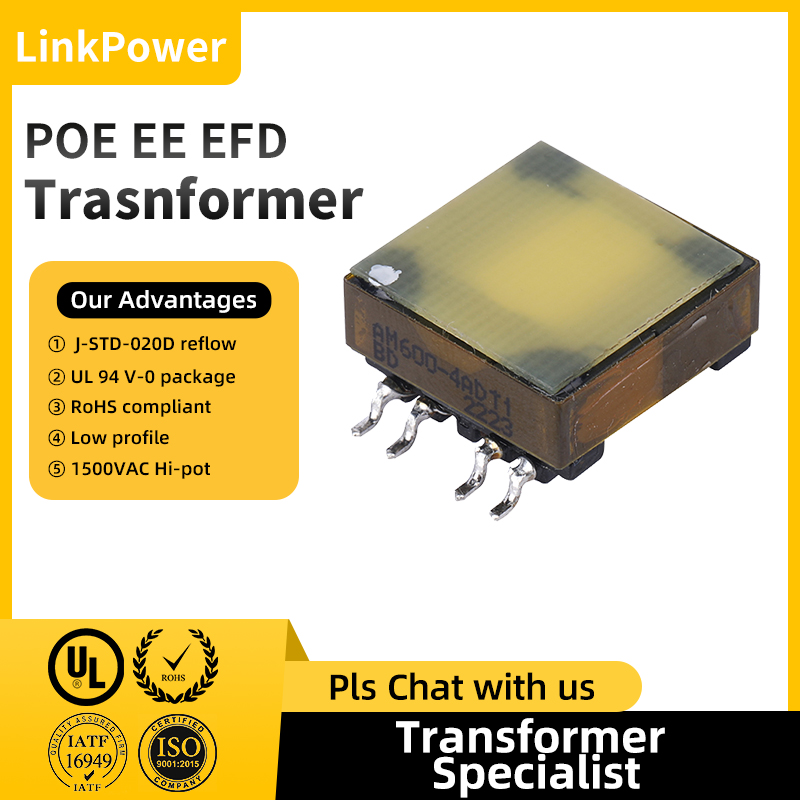

PoE Transformer Magnetics High Frequency Transformer
POE-531-1
The EFD25 high-frequency transformer is a compact, lightweight, and versatile transformer that can be used in a wide range of electronic devices and applications.
Built with a split bobbin construction and vertical package, this transformer has an easy-to-mount design that requires minimal space. It boasts high efficiency and a low-profile design, making it an ideal choice for applications with limited space and heat dissipation requirements.
The EFD25 transformer is capable of converting AC power to DC power, and is widely used in switch-mode power supplies, inverters, and power supply units. Its high-frequency characteristics and wide operating range enable it to further optimize energy conversion and improve overall system performance.
Built with a split bobbin construction and vertical package, this transformer has an easy-to-mount design that requires minimal space. It boasts high efficiency and a low-profile design, making it an ideal choice for applications with limited space and heat dissipation requirements.
The EFD25 transformer is capable of converting AC power to DC power, and is widely used in switch-mode power supplies, inverters, and power supply units. Its high-frequency characteristics and wide operating range enable it to further optimize energy conversion and improve overall system performance.
minimum order
1 piece
Country of Origin
Shenzhen Guangzhou
Quantity
PoE Transformer Magnetics High Frequency Transformer
- Forward transformer for PoE applications.
- Meets IEEE 802.3 bt(PoE) Standards.
- Operates in condition mode with 12V input.
- Very low power lose of core used with operation frequency up to 250KHz.
- Resistance to soldering heat Max three 40 second reflows at +250°C, parts cooled to room temperature between cycles .
- Moisture Sensitivity Level (MSL) 1 .
- Terminations RoHS tin-silver-copper over tin over nickel over phos bronze.Other terminations available at additional cost.
- Operating Temperature -40°C to +85°C. (Including coil temperature rise due to self-generated heat).
- Storage Temperature -40°C to +125°C.
- Weight13g.
- Type:EFD25 PoE Transformer Magnetics High Frequency Transformerpoe cable distance limit
