Efficient PoE Transformer - High-Frequency
POE-531-2

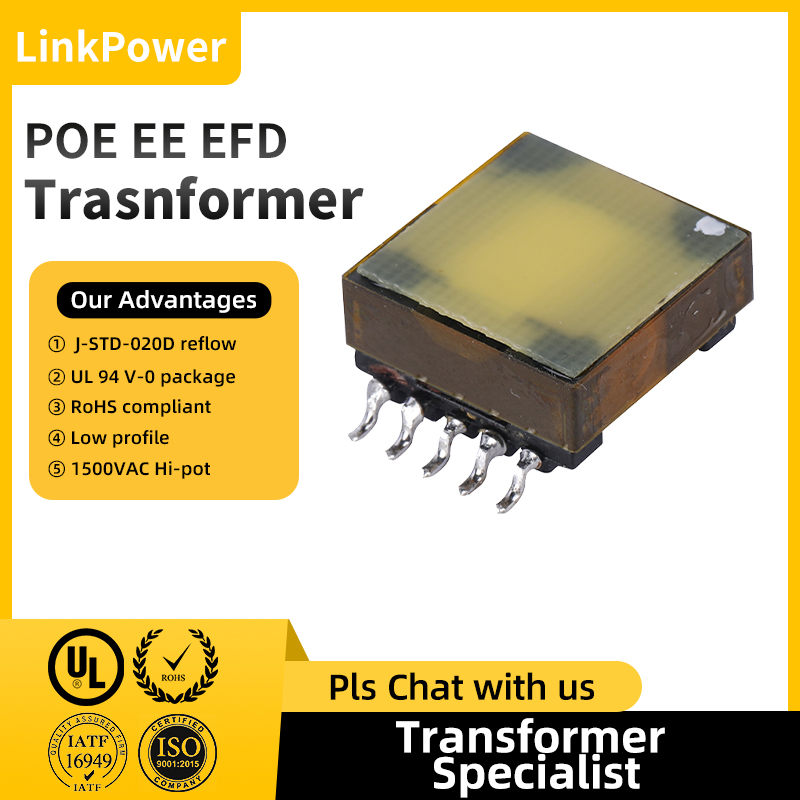

The EFD25 high-frequency transformer is a compact, lightweight, and versatile transformer that can be used in a wide range of electronic devices and applications.
Built with a split bobbin construction and vertical package, this transformer has an easy-to-mount design that requires minimal space. It boasts high efficiency and a low-profile design, making it an ideal choice for applications with limited space and heat dissipation requirements.
Built with a split bobbin construction and vertical package, this transformer has an easy-to-mount design that requires minimal space. It boasts high efficiency and a low-profile design, making it an ideal choice for applications with limited space and heat dissipation requirements.
minimum order
1 piece
Country of Origin
Shenzhen Guangzhou
Quantity
Efficient PoE Transformer - High-Frequency
- Forward transformer for PoE applications.
- pulse and high frequency transformer;efd 25
- Meets IEEE 802.3 bt(PoE) Standards.
- Operates in condition mode with 12V input.
- Very low power lose of core used with operation frequency up to 250KHz.
- Resistance to soldering heat Max three 40 second reflows at +250°C, parts cooled to room temperature between cycles .
- Moisture Sensitivity Level (MSL) 1 .
- Terminations RoHS tin-silver-copper over tin over nickel over phos bronze.Other terminations available at additional cost.
- Operating Temperature -40°C to +85°C. (Including coil temperature rise due to self-generated heat).
- Storage Temperature -40°C to +125°C.
- Weight13g.
- Type:EFD25 PoE Transformer Magnetics High Frequency Transformer
- Band:LINK-POWER
