Optimize the performance of your high-frequency electronic applications with our top-quality High Frequency Transformers.

• Place of Origin:Guangdong, China
• Brand Name:Link-Power
• Usage:High Frequency, Power,Planar Transformer
• Phase:Single
• Product name:Planar Transformer
• Product model:Planar Transformer
• Bobbin Type:Horizontal/ Vertical/THD/SMD
• Core Material:PC40, PC44, PC95
• Input/Output Voltage:Customized
• Power Rating:Customized
• Management Certifications:ISO9001/ISO14001/IATF16949
• ROHS/REACH:Complied
• OEM/ODM/OBM

Products Description

Series	Application
EE Transformer	Applied in the switching power supply,main power transformer
EF Transformer	Applied in the switching power supply,main power transformer
EFD Transformer	Auxiliary power transformer,main power transformer,choke coils
EPC Transformer	Auxiliary power transformer,main power transformer
PQ Transformer	Applied in the linear filter,choke,pulse transformer,driver transformer
UU Transformer	Varieties of switching power supply transformer,choke coils
EC/EER/ER Transformer	Applied in the linear filter,current transformer,smoothing choke coil,swithching power transformer,driver transformer
RM Transformer	Applied in the filters,inductor and transformer for telecommunication, other electronic equipment
POT Transformer	Applied in the filters for telecommunication equipment,and various kinds of inductor and transformer
DR Core	Choke coils,Peaking coils,Linearity coils,Alarm coils,Power choke coils,Fixed choke coils,Filtering coils.etc
EI Transformer	Various kinds of transformer and chokes
TOROIDAL Core	Pulse and wide-band transformers,various types of filters,inductors and chokes.

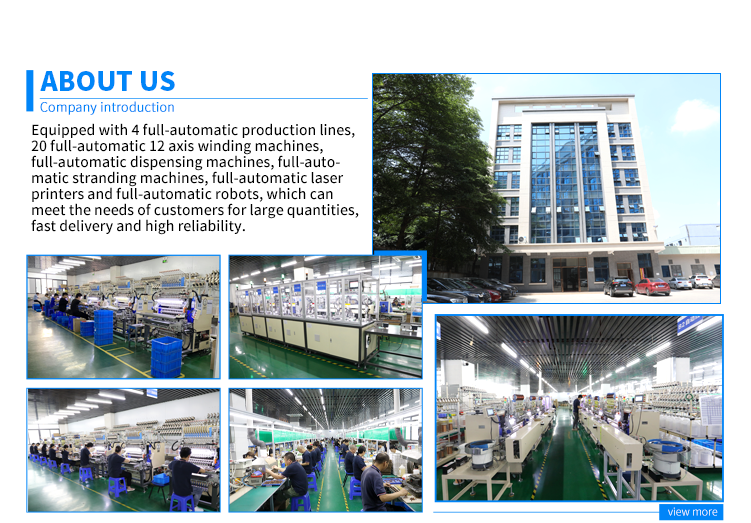

Company Profile

planar transformer

Planar transformer
